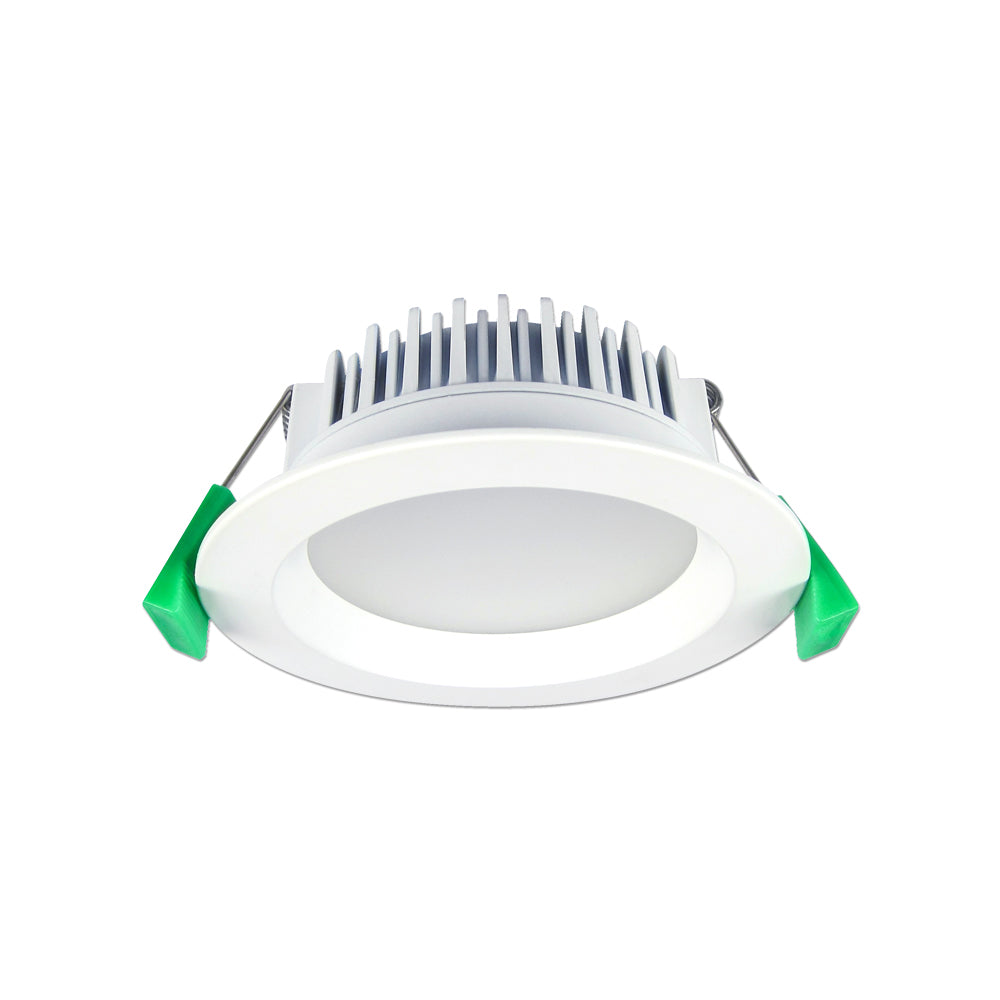

GeoLED downlights are a general-purpose range of downlights. Perfect for task lighting installations in either residential or commercial situations.

Use the GeoLED range in new or retro fit builds. Available in warm, natural, or cool white colour temperature options to allow you to easily enhance your space and create the ambience to suit.

A large size connector block paired with a removable/replaceable driver makes installation and maintenance a breeze.

The powder coated aluminium body offers a sleek look, whilst the PPMA diffuser casts a smooth distribution of light.

• Material - Aluminium, A6063 alloy
• Colour - White
• Shape - Round

Use:
• Application - Residential & Commercial use
• Type - 12W Round Fixed Downlight
• Use - Interior
• Warranty - 5 year
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44
• Rating - IC-F/IC-4

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 12.2W (including the driver)
• Lumens - 1020lm (3K) or 1040lm(4K)
• Colour Temperature - 3000K or 4000K
• CRI - >80
• Beam Angle - 90°
• Dimmable - Yes
• Max ambient operating temperature: +45°C

Physical size:
• Dimensions (mm) - 108Ø x 42H
• Cut-out (mm) - From 82-98Ø

Product Reference:
|• Catalogue 2021 - Page 06
• Catalogue 2022 - Page 87

Note:
• DALI Dimming available on request. (3K & 4K models only)

*Does not offer protection for highly corrosive environments, example: Zone D as outlined in the building code.

• Mounting - Recessed
• Cut-out (mm) - From 82-92Ø
• *HCB: 0mm | *SCB: 0mm | Height of fitting: 42mm
*HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.
