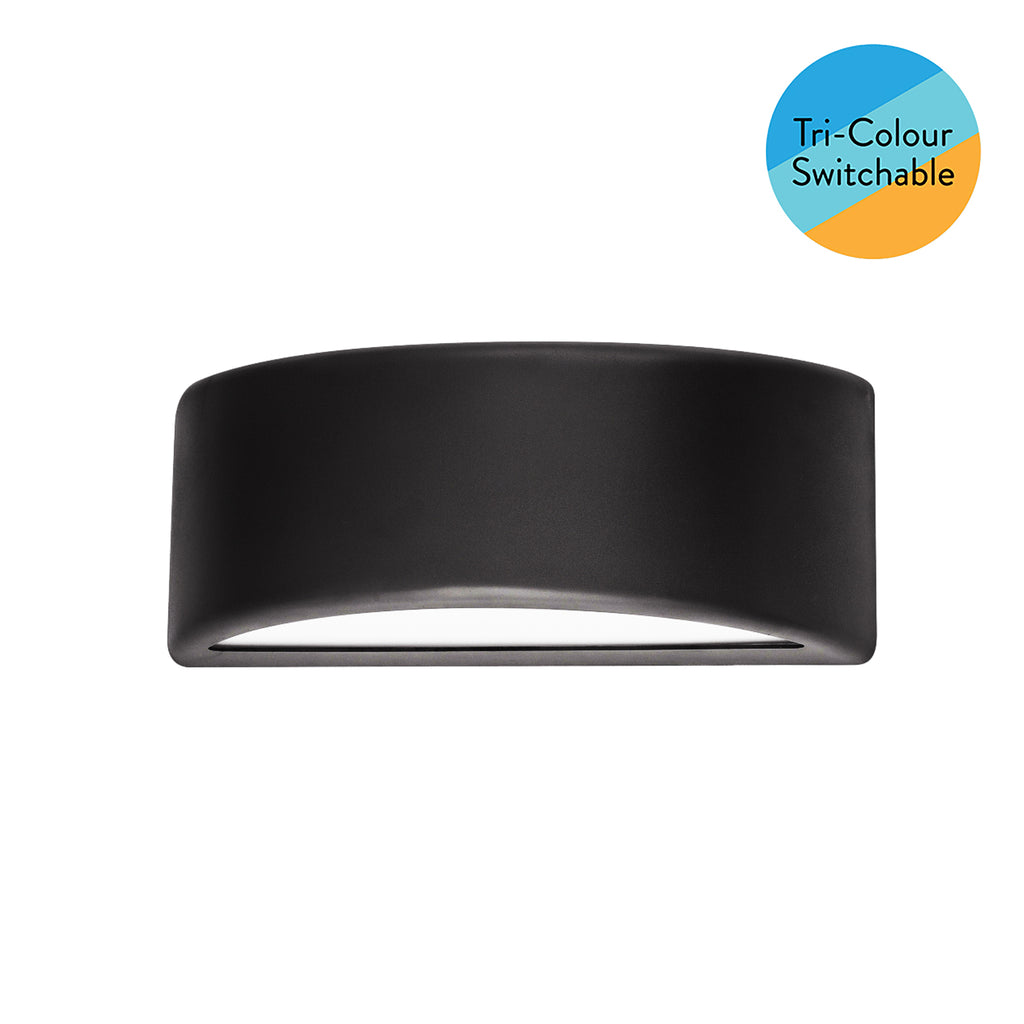

The Arc bulkhead range offers two models.  An up/down wall washer or a down only wall washer.  The built-in tri colour switch allows for the colour temperature to be adjusted onsite to suit the space.  Constructed from a UV polycarbonate, making it suitable for coastal environments.

• Type - One-Way, Bulkhead
• Material - UV resistant, anti-corrosion ABS + PC body and diffuser
• Colour - Black
• Mounting - Surface mounted

Use:
• Application - Residential use
• Use - Exterior use
• Warranty - 3 years
• L70 - 20,000 hours
• Switching Capacity - 20,000
• IP Rating - IP65
• Operating Temp - -20°C to 50°C

Power:
• Voltage - 230V
• Driver - built-in
• Double Insulated - Yes

Light output:
• Lamp Type - Integrated LED
• Wattage - 13W
• Lumens - 300lm (3K) / 330lm (4K) / 320lm (6K)
• Colour Temperature - CCT = 3000K / 4000K / 6000K
• CRI - >80
• Beam Angle - 160°
• Dimmable - No

Product info:
• Type - Up/Down Bulkhead
• Material - UV resistant, anti-corrosion ABS + PC body and diffuser
• Colour - Black
• Mounting - Surface mounted
• IK Rating - IK08

Physical size:
• Dimensions - 320L x 130W x 132D

Product Reference:
• Catalogue 2022 - Page 30

Cost-effective general lighting solutions, suitable for coastal installations where corrosive elements effect other materials

Power:
• Voltage - 230V
• Driver - built-in
• Double Insulated - Yes

• Mounting - Surface mounted
