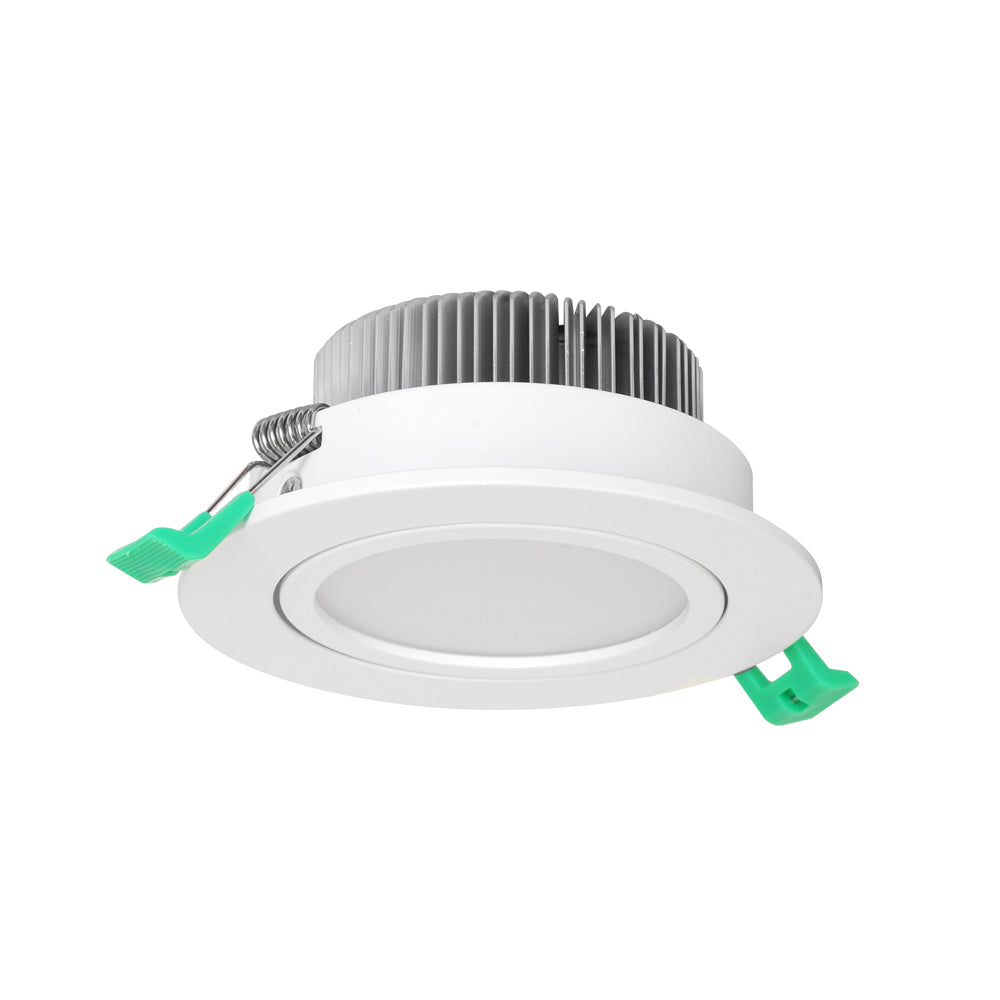

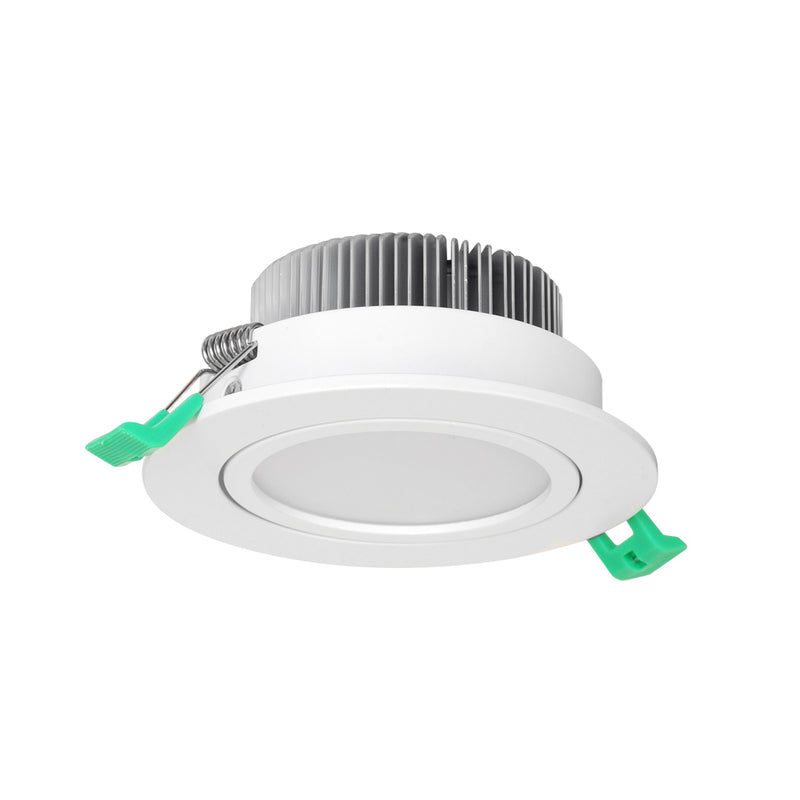

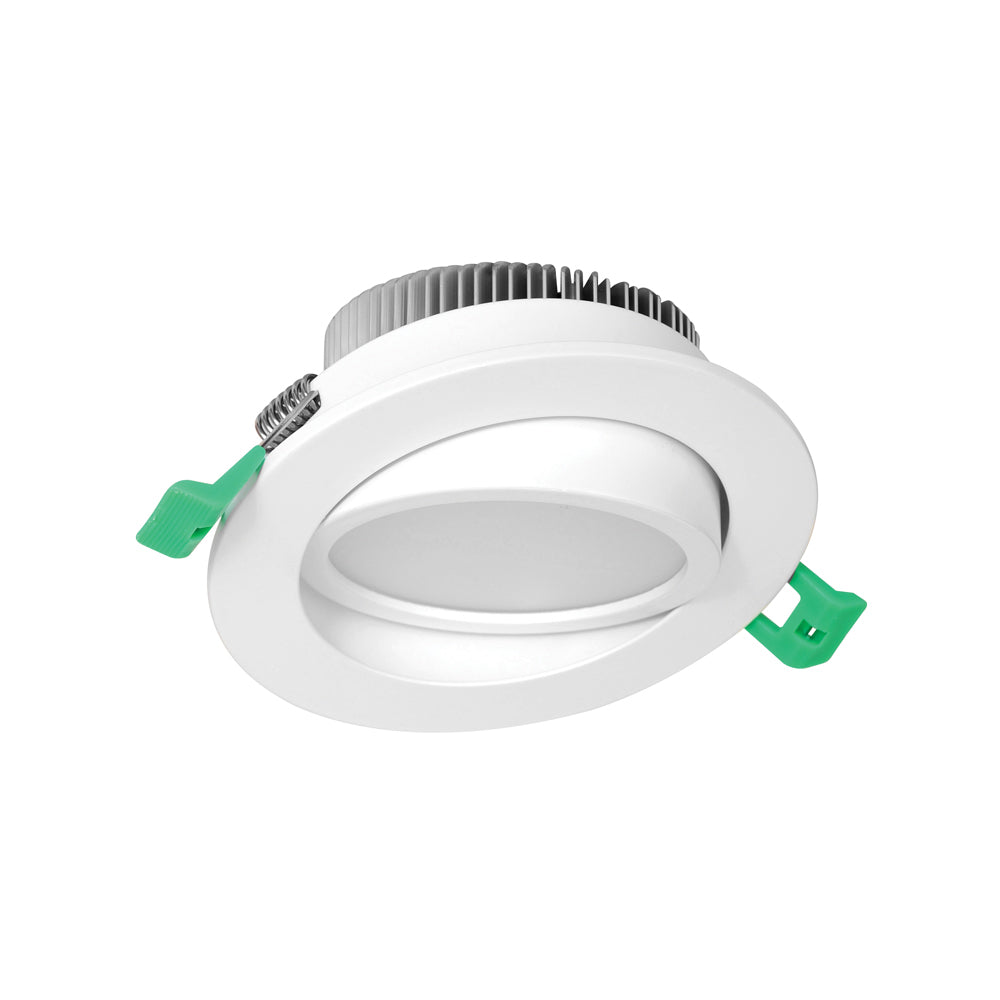

The GEOLED tiltable downlight is a versatile and efficient lighting fixture that features a tri-colour switchable temperature of 3000K, 4000K, and 6500K, providing a range of lighting options. It also offers the option to have either CRI 90 or CRI 80, ensuring accurate colour representation. The tiltable angle of 30 degrees allows for precise light placement, and the IP44 rating makes it suitable for use in moisture-prone areas.

• Material - Aluminium, A6063 alloy

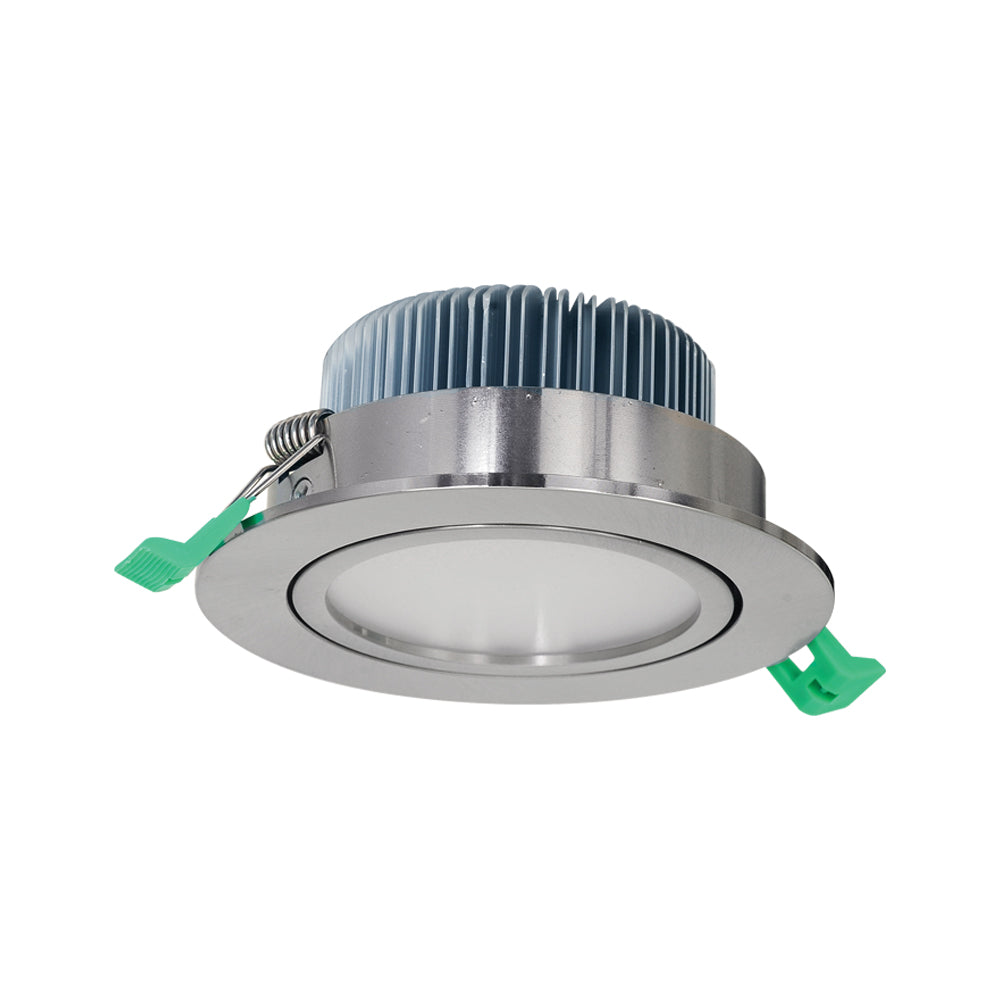

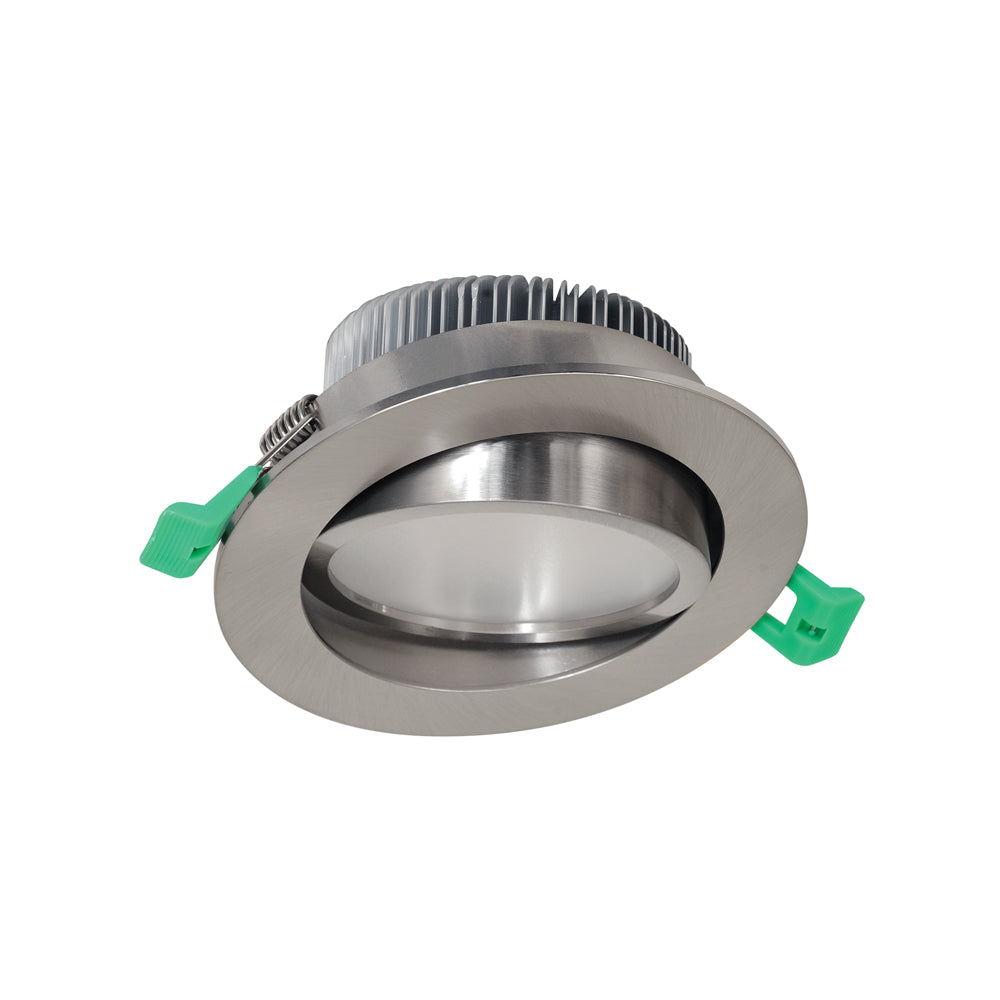

• Colour - White or Brushed Chrome
• Shape - Round

Use:
• Application - Residential & Commercial use
• Use - Interior
• Warranty - 5 year
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type - Integrated LED
• Wattage - 13.3W (including the driver)
• Lumens (CRI - > 80) - 980lm (3000K) | 1020lm (4000K) | 1000lm (6500K)
• Lumens (CRI - > 90) - 830lm (3000K) | 865lm (4000K) | 850lm (6500K)
• Colour Temperature - 3000K | 4000K | 6500K
• CRI - > 80 / > 90
• Beam Angle - 90°
• Tilt Angle - 30° (each way)
• Dimmable - Yes

Product info:
• Type - 13W Tilt CCT Downlight
• Choose between Warm White (3K), Cool White (4K) & Daylight (6.5K) to suit application use.
• Change the colour temperature using the switch on the driver.

Physical size:
• Dimensions - 109Ømm x 45mmHeight
• Cut-out - From 92-99Ømm
• Rating - IC-F/IC-4

Product Reference:
• Catalogue 2021 - Page 14
• Catalogue 2022 - Page 97-98

This model replaces our ICDLT13W3K-WH and ICDLT13W3K-BCH

Note: Brushed chrome models not suitable for exterior use and bathroom

• Mounting - Recessed
• Cut-out - From 92-99Ømm
• *HCB: 0mm | *SCB: 0mm | Height of fitting: 40mm
*HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.
